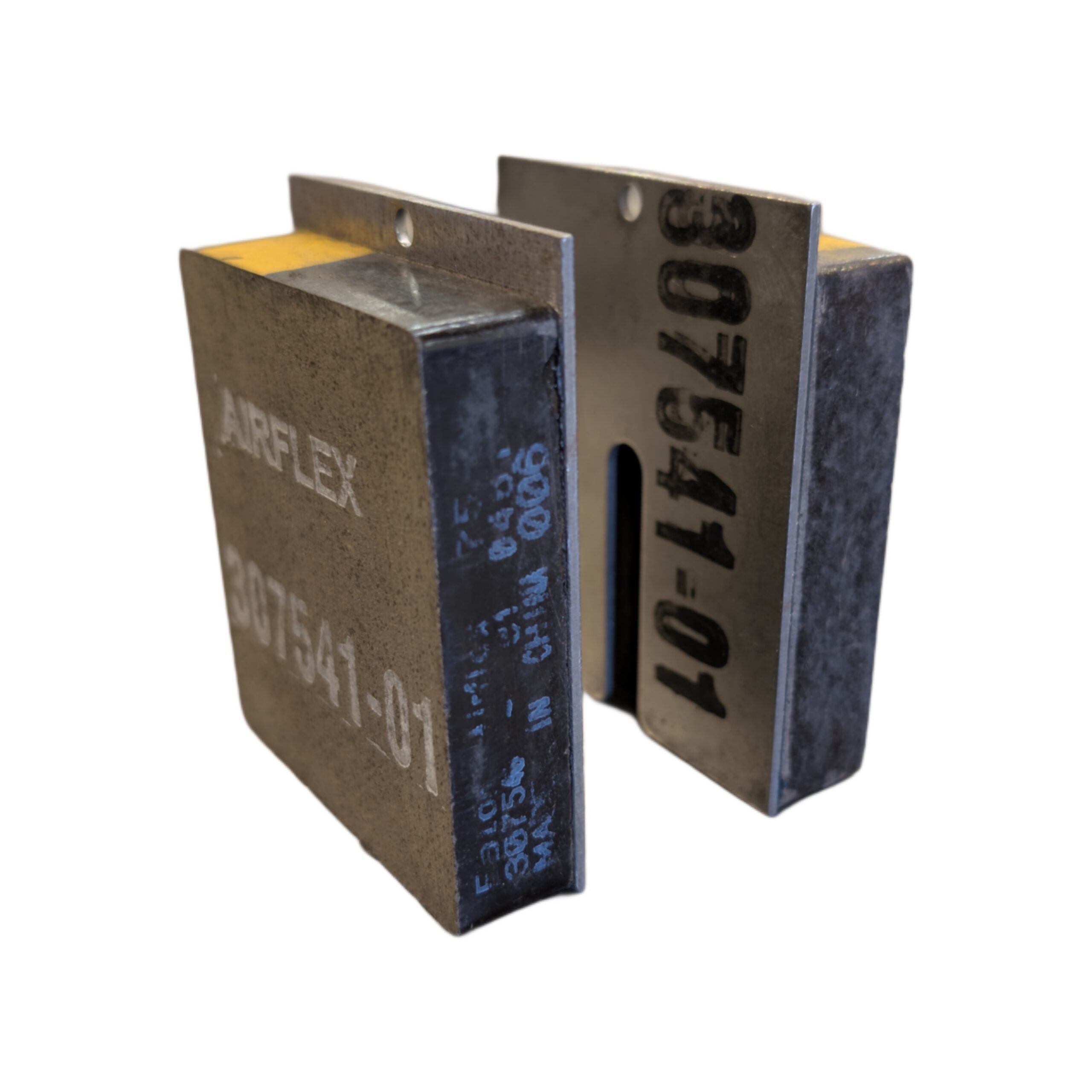

Standard Lining and Vegetable Seal Kit – P/N: 146258

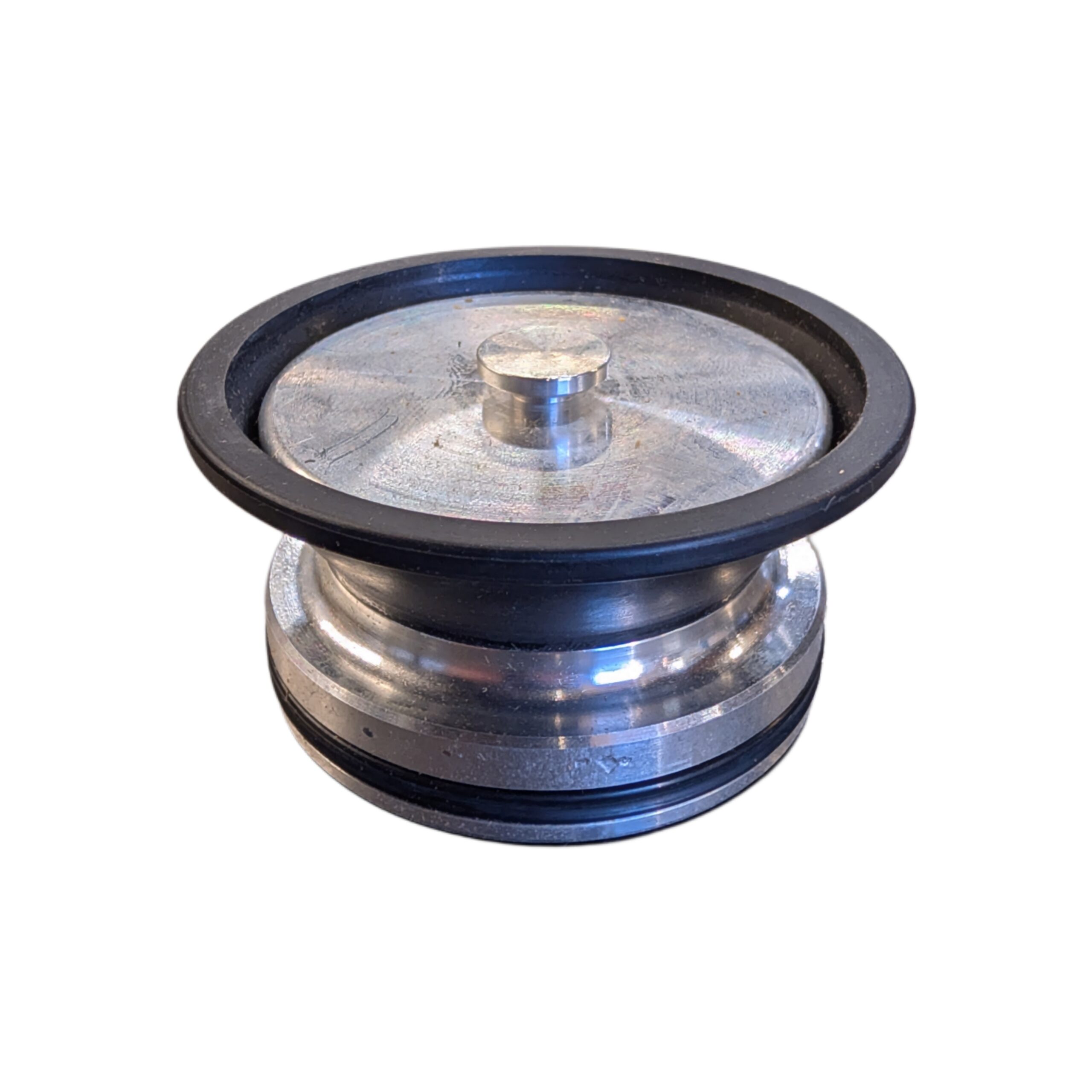

Piston Replacement Kit:
For Air and Mineral Base Fluid – P/N: 145862X
For Vegetable Base Fluid – P/N: 145862Y
Description:

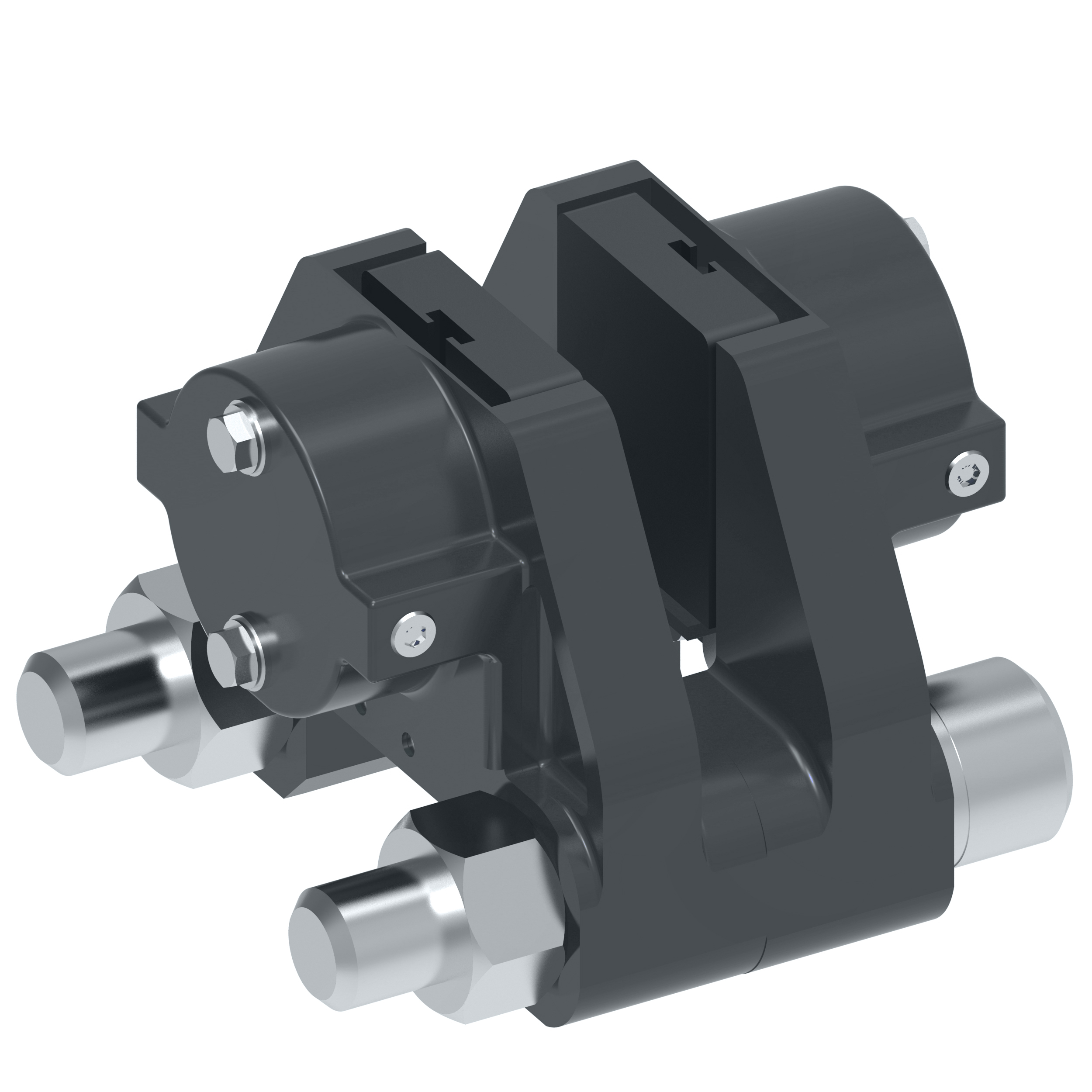

Caliper disc brakes are ideally suited for most large torque,
high energy stopping applications. By proper choice of actuating pressure, number of calipers per disc, number of discs
and disc diameter a braking system can be custom designed
for most applications.
The calipers are of the opposed piston design. This design permits fixed mounting of the caliper and the brake disc. Symmetrical split construction of the piston housings permits a center
reaction mounting and the ability to accommodate brake discs
of different thicknesses. Friction shoes attach to the caliper
actuating pistons and are replaceable without disturbing the
caliper mounting. Pressurizing the piston cylinders causes the
piston mounted friction shoes to clamp the disc, developing
the braking torque.
Caliper model 225DP100 is designed with self adjusting retracting mechanisms which compensates for friction material
wear and maintains a constant running clearance between the
friction shoes and brake disc. They also maintain a constant
displacement volume and hence a constant response time for
each brake engagement.
Features:
Split construction
Accommodates discs of different thicknesses and diameters
to meet a wide array of customer requirements.
Air or hydraulic operation
The DP and H calipers can be actuated with either air or
hydraulic fluid to accommodate existing systems and provide
a wide range of torque capabilities.
Large piston area
The large piston area coupled with high actuating pressure
gives high braking torque.
Ventilated disc
Ventilated brake disc improves cooling capabilities and
improves friction material life to minimize downtime and
maintenance costs.
Ease of maintenance
Friction pads can be easily replaced without disturbing caliper
mounting. The friction pads.
Where used:
• Conveyors
• Flywheel Brakes
• Mining Equipment
• Railroad Maintenance Equipment
• Tension Brakes
